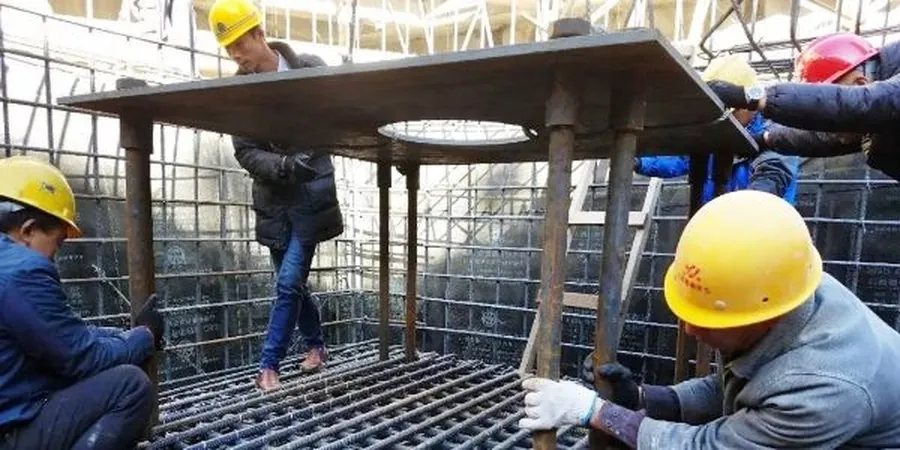

An isolation bearing has a simple job. It decouples the building from the earth. In Newmarket, the challenge is matching that bearing to the local ground. We see a lot of stiff clay till north of Davis Drive. South of Mulock, the soils soften near the Holland River valley. The seismic microzonation data for York Region shows site class D predominating, which amplifies short-period motion. A well-tuned base isolation system shifts the structure’s period past the peak amplification range. Our team sizes the elastomeric or friction pendulum units based on site-specific spectra, not generic tables. Coming from the lab side, we test the rubber compounds for shear stiffness degradation under repeated cycles—something the NBCC commentary recommends when you are outside prescriptive limits. In a moderate-seismicity zone like Newmarket, the cost-benefit conversation changes. It is not about survival only; it is about keeping the building operational after the design earthquake.
An isolator only works if the ground underneath is characterized honestly. We measure the soil first, then we size the bearing.
Methodology and scope
Local considerations
Newmarket sits on the edge of the Oak Ridges Moraine. That means interbedded sand, silt, and clay lenses that change every hundred meters. A borehole on one end of the building pad can look completely different from a borehole on the other end. Differential settlement under the isolator plinths becomes a real concern. The other risk is groundwater: in spring, the water table rises sharply in the low areas near the East Holland River, saturating the upper silts. If the isolation plane is below grade, that water needs careful management during construction and over the life of the building. We have seen designs where the moat wall drains were undersized for a spring thaw event, leading to ponding against the isolator housing. In our experience, the geotechnical report for a base-isolated building in Newmarket must include a detailed hydrogeological note. It is not an optional extra. The structural engineer needs to know the seasonal high-water mark to set the isolation plane elevation correctly.
Applicable standards
NBCC 2020 Part 4, Structural Design (seismic provisions), CSA S6:19 Canadian Highway Bridge Design Code (isolation bearing testing), ISO 22762-1:2018 Elastomeric seismic-protection isolators, ASTM D4015 Standard Test Methods for Modulus and Damping of Soils by Resonant-Column, ASCE/SEI 7-22 Chapter 17, Seismic Isolation
Associated technical services
Site-Specific Seismic Hazard Analysis
We generate the MCE and DBE spectra for your Newmarket site using probabilistic seismic hazard analysis (PSHA) tied to the NBCC 2020 model. The report includes site amplification factors, deaggregation plots, and time histories for nonlinear analysis when the building code requires it.
Geotechnical Characterization for Isolation Systems
Full subsurface investigation targeting the isolation plane depth. We log the stratigraphy, run index and dynamic soil tests, and deliver a soil-structure interaction model that the structural engineer can plug directly into ETABS or SAP2000. The model accounts for the stiff till-over-soft clay transitions common in Newmarket.
Prototype and Production Bearing Testing
Through our accredited lab network, we run the full ISO 22762 test protocol: shear stiffness degradation, low-temperature crystallization, and aging. We also witness production testing at the manufacturer to confirm the properties match the design values before they ship to site.
Typical parameters
Frequently asked questions
How much does a base isolation design study cost for a building in Newmarket?
For a typical mid-rise structure in Newmarket, the combined geotechnical investigation, seismic hazard analysis, and isolation system preliminary design runs between CA$5,320 and CA$11,840. The final cost depends on the number of boreholes, the depth of the investigation, and whether nonlinear time-history analysis is required by the building official.
Does the NBCC require base isolation for hospitals in Newmarket?
The NBCC 2020 does not mandate base isolation for any specific building type, but it classifies hospitals as post-disaster buildings with a higher importance factor. When conventional seismic force-resisting systems cannot meet the performance objectives for continuous operation, base isolation becomes the most practical solution to control inter-story drift and protect sensitive equipment.
What is the typical isolator displacement we should design for in York Region?
For a site class D profile in Newmarket, the MCE design displacement for a 3-second-period isolation system usually falls between 250 mm and 400 mm. The exact value comes from the site-specific spectra and the isolator's effective damping. We size the moat and utility connections around this displacement plus a safety margin per NBCC commentary.
Can you design base isolation for a retrofit on an older Newmarket building?
Yes. Retrofits are more complex because we need to verify the existing foundation capacity and stiffness. The process involves extracting concrete cores from the existing footings, testing the bearing soil directly below the foundation level, and designing a transfer diaphragm to carry the column loads into the new isolation plane. We have done this on heritage masonry structures where the floor accelerations had to stay below 0.15 g.
How do you handle the high water table near the Holland River for an isolation pit?
In Newmarket's low-lying areas, the isolation plane often sits below the seasonal high groundwater level. We design a permanent dewatering system around the isolation pit—typically a perimeter drain with a sump and duplex pump—and specify waterproof concrete for the moat walls. The geotechnical report includes a groundwater monitoring program through at least one full hydrological cycle before finalizing the pit elevations.
