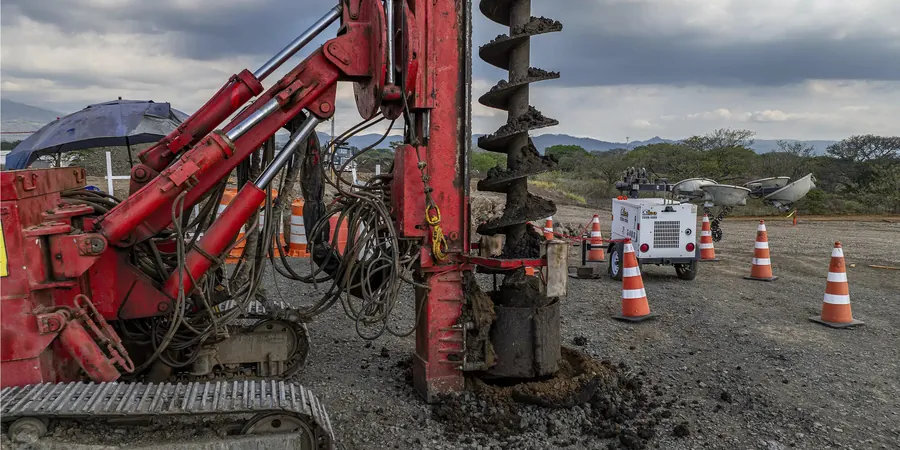

Up here on the Oak Ridges Moraine, we see a lot of surprises when the auger hits the ground. In Newmarket Ontario, the subsurface can switch from dense till to compressible silt within a single lot, and that is where stone column design becomes a practical necessity rather than an afterthought. The glacial history left behind pockets of soft clay and loose silty sand that just do not cooperate with shallow footings. Rather than over-excavating or switching to deep piles, we often recommend aggregate piers installed by vibro-replacement because they densify the surrounding soil while creating a stiff, draining column. For sites near the Holland River floodplain, where groundwater is high, we combine the vibrocompaction process with pre-drilling to maintain hole stability. Every design starts with a careful look at the fines content and the undrained shear strength, because a column that works in sandy silt will behave differently in sensitive clay. In our lab, we run grain-size distributions and Atterberg limits on Shelby tube samples before selecting the column diameter and spacing. This approach avoids overdesign and keeps the treatment zone within the actual weak pocket, which is what makes stone column design in Newmarket Ontario a cost-effective ground improvement strategy for residential and commercial builds alike.
Stone columns do not just replace weak soil; they densify the surrounding matrix and create a composite mass that settles less and drains faster than the untreated ground.
Methodology and scope
Local considerations
The freeze-thaw cycles across southern Ontario punish any structure that sits on moisture-sensitive ground, and Newmarket sees over 100 such cycles in an average year. When you place a footing on untreated silt, the seasonal volume change can open cracks before the drywall is even taped. Stone columns mitigate this by creating vertical drains that pull excess pore water out of the matrix during spring thaw, reducing the heave potential. The bigger risk we plan for in stone column design is differential settlement between treated and untreated zones: if the column grid stops at the property line but the neighbour's addition sits on native soil, the transition zone can experience angular distortion. We address this by tapering the column depth at the perimeter and specifying a reinforced grade beam that spans the last untreated strip. In areas of Newmarket Ontario where the water table is within two metres of grade, we also specify a working platform of crushed stone to support the vibroflot and prevent mud from pumping up around the hole, because a collapsed column during installation is a costly and avoidable delay.
Applicable standards
CSA A23.3: Design of Concrete Structures (aggregate quality and column load transfer), ASTM D1586-18: Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling (pre-design investigation), ASTM D4718-87(2007): Standard Practice for Correction of Unit Weight and Water Content for Soils Containing Oversize Particles (stone gradation verification), Ontario Building Code 2012 (amended), Part 4: Structural Design (bearing capacity and settlement limits), FHWA-NHI-16-009: Ground Improvement Methods (vibro-replacement and aggregate pier design)
Associated technical services
Pre-Design Soil Characterization
We drill and sample the weak layer, then run triaxial UU tests, Atterberg limits, and grain-size analyses in our accredited lab. The report includes the undrained shear strength profile, sensitivity classification, and groundwater monitoring data required to select the column type and installation method.
Stone Column Grid Design and Settlement Analysis
Using the Priebe method and, for irregular grids, axisymmetric finite element modelling, we determine the column diameter, spacing, and depth. Deliverables include a plan showing column locations, a settlement curve for the design bearing pressure, and a specification for stone gradation and compaction energy.
Post-Installation Verification Testing
We mobilize a CPT rig or perform plate load tests on production columns to confirm that the treated ground meets the stiffness and bearing capacity targets. The verification report compares as-built data against the design assumptions and includes recommendations for any remedial columns if needed.
Typical parameters
Frequently asked questions
What soil conditions in Newmarket make stone columns the right choice over deep foundations?
Stone columns work best when the weak layer is a soft to firm clay or loose silt that extends less than about ten metres below the footing elevation. If the undrained shear strength is above roughly 15 kPa and the fines content is not so high that drainage is blocked, vibro-replacement densifies the soil and creates a composite mass that can support bearing pressures between 150 and 400 kPa. In Newmarket's glaciolacustrine deposits, we often find exactly that profile: a crust of stiffer clay over softer material, with a dense till at depth. When the weak zone is deeper or the loads are very heavy, we compare stone columns against driven piles or drilled shafts and recommend the option that gives the required performance without over-mobilizing the site.
How is the stone column spacing determined during design?
Spacing is governed by the replacement ratio needed to achieve the target settlement reduction. We start with the Priebe method, which relates column diameter, grid pattern (triangular or square), and the constrained modulus of the native soil to the composite settlement. For typical single-family residential loads in Newmarket Ontario, the spacing usually falls between 1.5 and 2.5 metres centre-to-centre. We confirm the design with a trial column and, on larger commercial jobs, run a finite element model that captures the actual column layout and any boundary effects from adjacent untreated ground.
What quality control tests are performed after stone column installation?
The most common verification method in Ontario is a cone penetration test (CPT) pushed through the centre of a production column, which gives us a continuous profile of tip resistance and sleeve friction. We compare the CPT data against the surrounding untreated soil to confirm that the column material is dense and continuous. On critical structures, we also run a plate load test per ASTM D1194, applying 200 percent of the design bearing pressure and measuring settlement over time. Both methods are referenced in the FHWA ground improvement manual and are accepted by municipal reviewers across York Region.
What is the typical cost range for a stone column design package in Newmarket?
A full design package that includes the pre-design geotechnical investigation, laboratory testing, settlement analysis, and construction specifications generally runs between CA$2,060 and CA$6,800 for residential and light commercial projects. The final figure depends on the number of boreholes required, the depth of the weak layer, and whether finite element modelling is needed beyond the standard analytical methods. We provide a fixed-fee proposal after reviewing the site location and the preliminary structural loads.
